Help me please with bathroom layout. Stuck!!

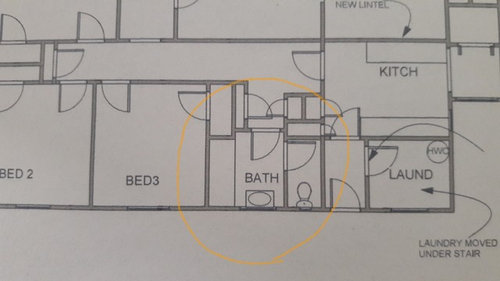

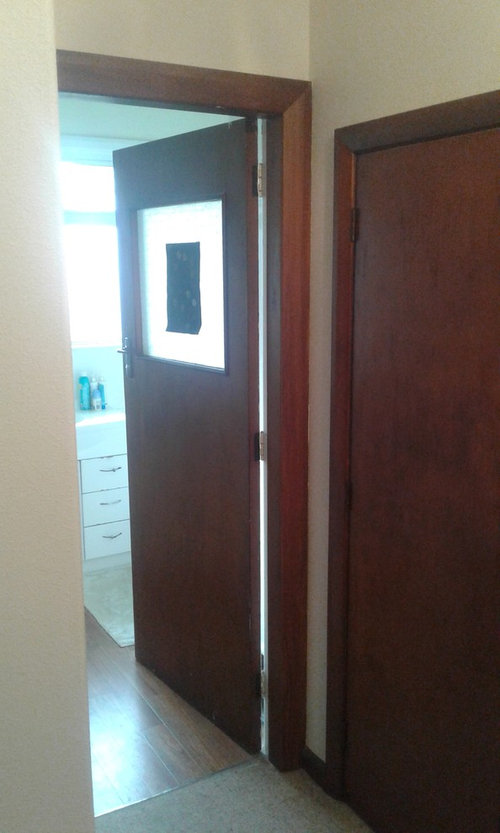

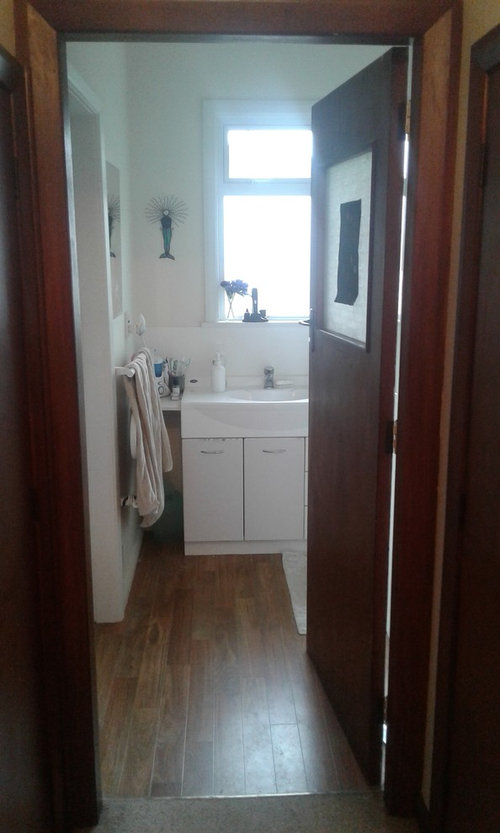

The current bathroom is off the hallway. It has an open space before you reach the bathroom door. In this space there is a cupboard on either side. The length of the walls (with these cupboard doors) are different lengths. the left side is 950mm until you reach the bathroom door and on the right side it is 1.25mtrs. So I have thought the cupboards and the bathroom door be removed and put in a slider door or cavity door right there at the hallway.
The new linen cupboard could go around the corner in the hallway using some of that removed cupboard and also could possible claim some of (or all) of my sons wardrobe. His wardrobe could go around his window frame perhaps?
Going back to the bathroom the other current measurements are:

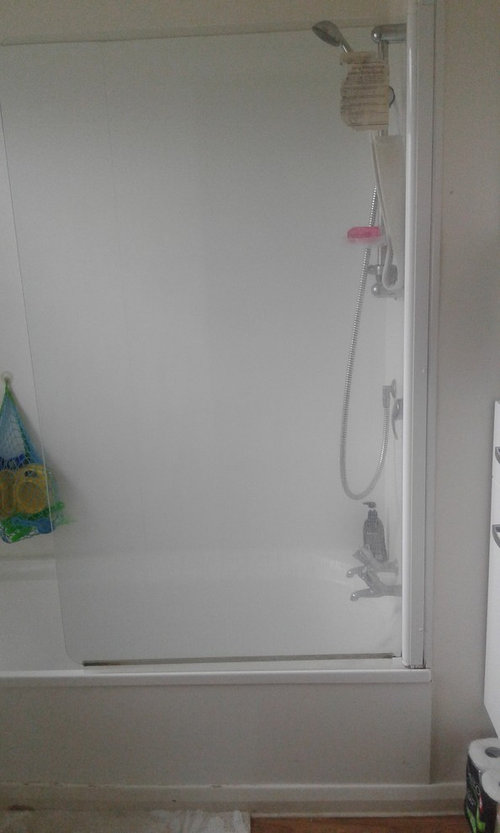

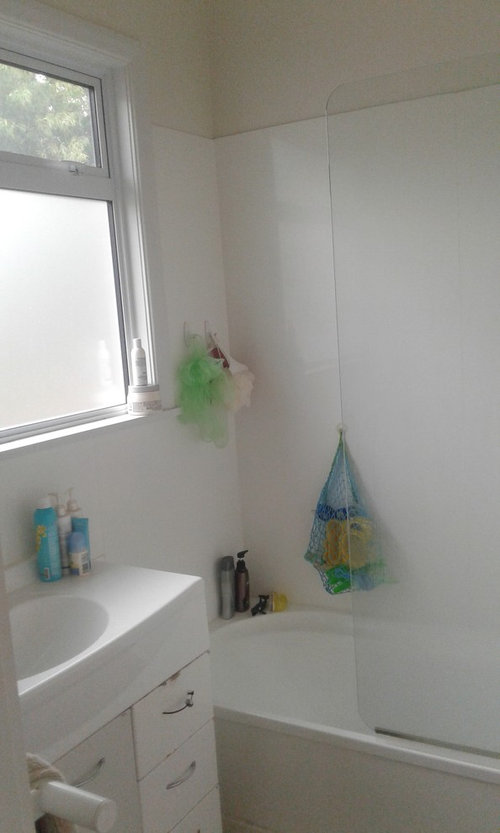

The main bathroom is 2mtrs wide by 2.20mtrs to the bathroom door.

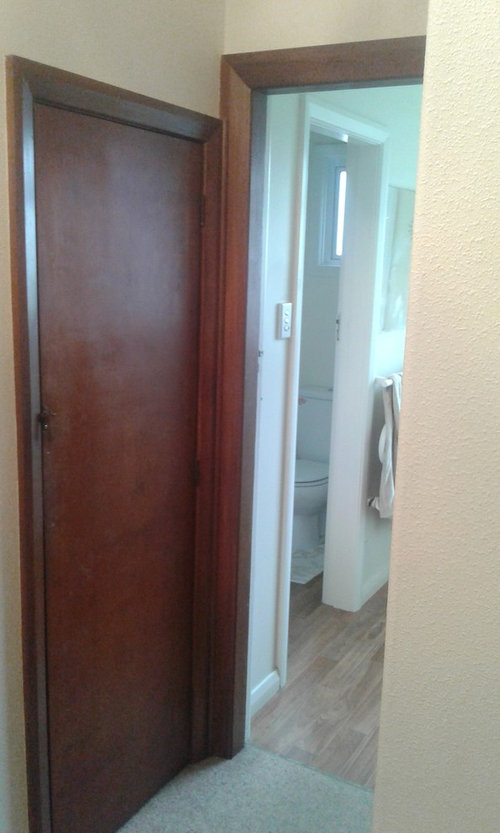

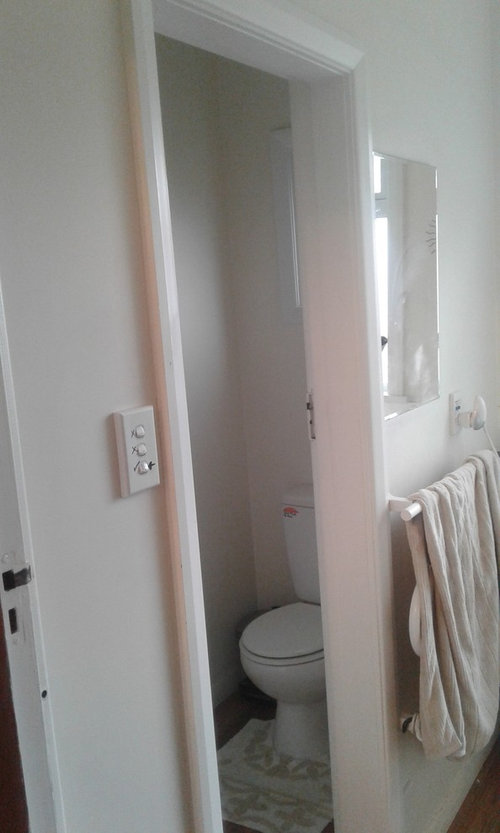

The toilet room is 1mtr wide by 1.8 in length.
And the width of the entrance before the bathroom door, which includes the inside space of both cupboards is 1.88mtrs.
Unfortunately the cupboard closest to the kitchen backs onto where the fridge is and has to stay.
The kitchen is also one i am going to need help with too.
Thank you so much for helping :)
Comments (7)
7 years agoHi!
The light grey is your original floor plan. Hope these are of some help, good luck with the renovation.
Adrienne Alford thanked caitlinfurby- 7 years agolast modified: 7 years ago
Related Discussions
Please help with open plan bedroom and bathroom layout
Comments (10)Thank you oklouise those drawings have given us some good thoughts. The front door to the house is bottom left corner of the drawing and will swing against the Master Bedroom wall where it is thickest otherwise the door will swing into the lounge room so we'll have to get creative with the Master Bedroom sliding door location. Attached for reference. Gallifrey The ghosted wall you mentioned is the original wall before the renovation. It will be taken down so there won't be any wall in the bedroom, we were hoping to have an open plan Master Bedroom and Ensuite. LesleyH Good point, we'd love a nice large shower. We've had a bathtub combined shower for 20 years and it's on the narrow side....See MoreHelp with bathroom layout please
Comments (6)a simple retile, new vanity, shower and toilet will be at least $10,000 with very careful choices but anything that involves a leaking upstairs bathroom is a much bigger issue so first priority is to ask a plumber to try and identify the problem and then make plans that start from fixing the leak before any more damage is done...if there's a problem that needs the whole bathroom to be stripped out and relined, pipes repaired. new waterproofing and refinishing as well as repairs to downstairs walls and ceilings expect a much bigger price and rearranging the wiw wall could be done at the same time (btw when the plumber identifies the reason for the leak there may be some insurance claim)...See MoreHelp with bathroom layout please.
Comments (20)@oklouise thanks for measurement suggestions, good starting point with so many choices available. About the bath, we thought just a freestanding, or back to wall bath, would take less space compared to drop in bath. But it something worth considering with the suggested layout. Also, the bathroom entry door would be sliding cavity if that helps. @differentways thanks for a suggestion that we haven't really thought about. We have considered a smaller Japanese style deep bath, but obviously this would not be practical for kids. Just to make sure I understand your concept, you are suggesting a purpose built bath which will be about 2570mm (including the ledge), husband thinks this is very generous :). My husband and I can't find a photo of something similar, do you have a link? Are you suggesting the sides of the bath to be a lower height compared to standard bath? I like the idea of a ledge, would definitely make bathing kids easier. About the position of the ensuite, do you mean placing it outside the bedroom area so it can be accessed by others? We have discussed this, still part of ongoing discussion. If need to we just have to move the bedroom entrance door. I have attached a google earth view....See Moreplease help me change layout for kitchen/bathroom
Comments (4)Is this to be a rental for ever, or are you going to move into home at some stage? Doing any changes at all with a rental is not cost effective. If the kitchen and bathroom is clean and fresh with no working issues, this would be fine for a rental. You may not like the bathroom position, but if your rental price is correct for this market then potential tenants will not worry. Have a conversation with your local real estate agents, to get more informed about the demographic and what they expect....See More- 7 years agolast modified: 7 years ago
Thanks @oklouise.

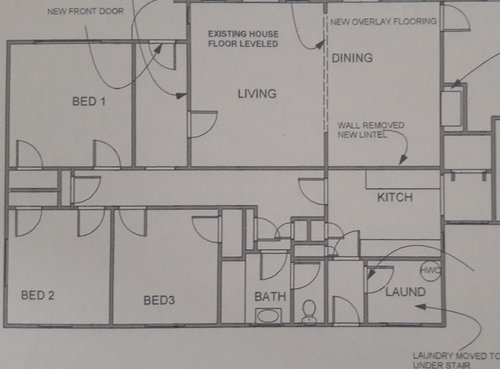

Yes the door between the laundry and toilet is gone and just wall now. The laundry has gone downstairs and in its place is a internal stairwell to downstairs. The wall between the kitchen and dining has been removed. At the other end of the dining room are french doors and a deck.
The kitchen is going to pretty much look like it does in those plans except the fridge has to stay where it is....which is in that first cavity area that you see when entering the kitchen from the hallway and its on the right.
At the far end of the kitchen will be a walk in pantry with a cavity/barn door.
Through that door down the far right end of the dining area is a second lounge/my work reception area. Then a bedroom (massage room) and around from there an ensuite.....backs onto the walk in pantry. Hope that helps make a bit more sense? Maybe lol.
The proposed kitchen plans look like....
