If you have a gap I would make sure there is plenty of room to get your hand behind the taps for cleaning purposes

I would prefer flush to wall with a sealant, the following website might help

https://www.adpaustralia.com.au/semi-recessed-vanities

Hi thanks for the responses,

Ton12H 80 or 50mm should be enough for cleaning purposes

siriuskey - The miya 550 might be suitable

https://docs.wixstatic.com/ugd/d3eff6_87984c10ec484eac810d89d426d0e4fc.pdf

but with a non protruded length of 310, to make it flush with the wall would require i cut down the bench to basically 310 from 420 right? a loss of 110mm?

I also want to have a 150mm shaving cabinet over the top so cutting down bench space would make the cabinet loom over the basin - do you also have an opinion on how deep a bench should be to have a shaving cabinet before that cabinet starts blocking your access over the bench?

Unless your walls are be brick the wall cabinet can easily be recessed into the wall cavity

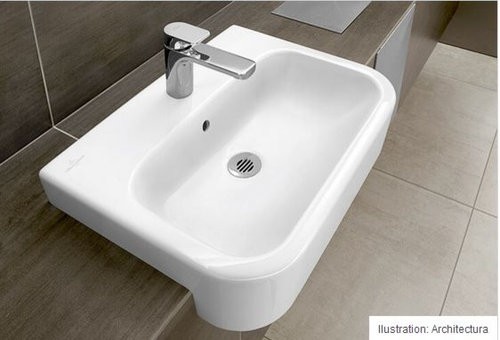

This would be more like what you wanted

https://docs.wixstatic.com/ugd/d3eff6_a04e658a7e4642079c814428ec3f7254.pdf

Hi my width is just under 900 and at this stage we are using a cabinet maker.

My walls are brick, double brick house. Do you have an opinion then on shaving cabinets when its a brick wall?

so at a 420mm deep bench

150mm shaving cabinet

270mm of open bench

acceptable or too imposing, if it sticks out too far it stops you being able to dip your head down into the basin and splash water on your face etc

Secondly

that link directly above of a vanity unit all done, what semi recessed basin is it? make/model, it achieves the flush affect at 350mm so a bit more than 320 for the Miya550

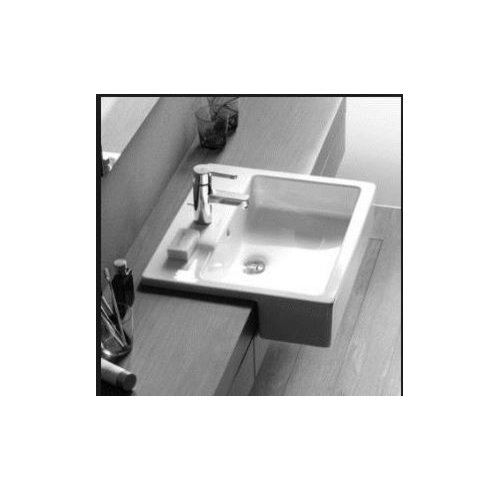

Here is another way to get rid of a gap behind the basin and account for the shaving cabinet.

Put a ledge in under the shaving cabinet that the basins (in this case inset) go flush up against

?

That ledge looks like it's recessed back into the wall and I think it's important that you consider the height of the shaving cabinets above the basin to make sure you can splash your face. The link I posted was to basically show what sizes you could look at using, is the vanity going to be up against the wall as per the posted photo.

Hi, its not my place but apparently its a single leaf brick internal wall and that ledge is another brick 'wall' put along the internal wall then tiled.

The height of my shaving cabinets in another room is 400mm above bench height.

Vanity is going to be up against the wall but probably no ledge like the above.

Do you have a floor plan to share that might give everyone more to work with

I have 67 mm behind my sink. The shaving cabinet over is not recessed. Works well. Sink is 410 total depth including handy ledge at back of sink.

Hi

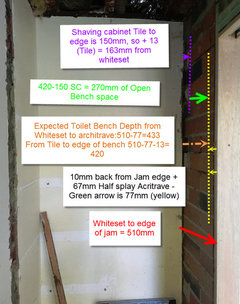

Basic floor plan and image of the area this is going in below

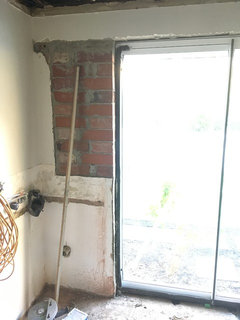

The specific nook created

Kate is that semi recessed the sink ? what is the total bench depth and also shaving cabinet depth, i am trying to see how much of your bench doesnt have the shaving cabinet hovering over it

Can i also ask for the distance between your bench to the bottom of the lowest protruding part of the shaving cabinets?

Hi Siriuskey, what height do you generally propose shaving cabinet to be above the bench?

Are you having a sliding door into the new space, if so the bench depth could be up to the architrave and your sink placed on and forward on the benchtop by centering or off set to the wall. This would overcome the depth problem with the shaving cabinet. Do you need shaving cabinets in this space when a mirror would be enough, I will try and do a rough drawing today, any measurements.

On another point I would change the sliding door to a glass hinged if dimensions allow. this makes for a more usable laundry space, I would add a window next to the bench for ventilation and drying any possible clothing hanging above the bench

Hi access to the toilet from the laundry is a Humes Cavity Sliding Unit, Flush Jam, so the opening is 720mm.

I do intend to have the bench depth come to the architrave , that is the writing in Orange in the photo further up, how i get to 420mm from 510mm total space.

Whilst no cabinetry is in, the sliding window and now bricked up window space is. So any wind assisted airing will have to occur with the sliding door open. I will have a security screen on it.

Your renovations are well underway, so after seeing the small floor plan and that the vanity is on an internal wall and you apparently still want the Shaving Cabinet.

Having cavity brick walls I would get your brickie to remove a section of the brick wall so that the shaving cabinet can be recessed back into the cavity, this will overcome any concerns you have about bumping your head, this opening can then be patched along with other walls.

I would take all of your photos and measurements to someone like Reece to pick a hand basin to fit,, I would also keep in mind that if say the width of the vanity is around 900 the shaving cabinet would match that width and you would end up with say 2 x 450 mirrored doors, which puts the mirror join in the middle and in your face when using the vanity. cheers

gday, well the shaving cabinet height in my other bathroom is bench to underside of shaving cabinet = 400mm

So thats one dimension.

Then with a 420mm deep bench (up to the architrave ), if I have 150mm shaving cabinet protrusion that leaves 420-150 = 270mm free airspace so to speak above the bench. Further if I use semi recessed that protrudes from the end of the 420 mm bench like this,

http://www.raymor.com.au/pdf/Aquamarine%20Semi-recessed%20Basin%20(23.06.2019%209-34-29).pdf

I will have even more clear airspace.
