Design Dilemma Building a Home

first time building - what do you think of our plans

6 years ago

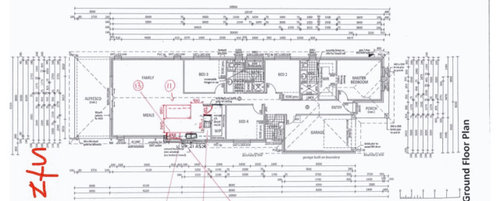

It’s a small narrow block but within our budget. We’ve maxed out build space. Any thoughts on the plan? I’ve marked north and south. I don’t know much about how this affects natural light in rooms.

Also not indicated on the plan is a long splash back window in the kitchen below the overhead cabinetry

Featured Answer

ddarroch

6 years ago

Another way to get northern light into the home is to raise your windows, by having clerestory (highlight) windows. I'd recommend you look into this, as this could also increase privacy also. You don't want your windows too high, at the eave height, as it will be permanently shaded, leaking heat in winter. Long narrow windows, high up, can be of a similar size (area) to a normal shaped window, but receive less overshadowing, & be more private.

Another way to reduce overshadowing on a narrow block, & receive more northern light, is to change the roof shape, & build a skillion roof, with north facing clerestory windows. This is a a GREAT way to do this! I'm guessing you're on a limited budget, & this may increase costs. Of you have a single storey northern neighbour that is likely to overshadow you I'd definitely investigate if this is possible. At least for your living areas, as they'd be much brighter, & greatly increase your sense of privacy for any northern windows.

Here is an extreme example of a skillion roof & northern clerestory windows greatly increasing northern light & privacy.

Sort by:Oldest

Comments (9)

ddarroch
6 years ago
I've just come from your other thread, & will again recommend you read ALL of the Your Home website to learn about harnessing natural light for energy efficiency & comfort. This is the section about orientation,

http://yourhome.gov.au/passive-design/orientation

Summarising, in Australia the sun moves across the northern portion of the sky.

So you want to locate your living areas to the north, where they will be lighter, warmer in winter, & cooler in summer (shaded by appropriate length eaves, as the sun is higher in the sky).

South facing rooms will be cooler & darker, as they receive very little direct sunshine. While eastern & west facing rooms are difficult to shade due to the angle of the sun in those directions, west facing rooms may become very hot.
ddarroch
6 years ago
My first question would be where are you located? Cairns will have very different requirements to Tasmania, due to their different climates.

While I agree with other posters, that flipping the plan will give you more light, the living areas will be similar in any case. Receiving N, E & S light. Flipping the plan will give additional bedrooms northern light, instead of the garage.

But the main point is trying to get northern light into your living areas, & direct sunlight into those living areas in winter. This is difficult on such a narrow block.

So my next question is what is to the north of your block? A neighbouring property I presume? If this is a two story property it will badly shade your living areas, no matter what you do.

So what's the best way to get northern light (other than going up & building a two storey home, to get northern light into the top storey)? It's to build as close to the southern boundary as possible, so your northern windows are as far from your boundary as possible. This will reduce overshadowing from your northern neighbour.

It looks like you have a zero lot boundary for your garage. How far is it from your meals area to the boundary, & how far is it from the kitchen to the boundary? If the plan is flipped, how far will it be from the family room to the boundary? What I'm getting at is, which orientation is less likely to have overshadowing of your northern neighbour of your living areas?
Related Discussions
What do you think of our dream-home plans?
Q
Comments (57)
Hey Nik Star, I've had a PowerPoint play with oklouise's edits. This is what I meant about garage entry to the pantry and a laundry in the garage. The red arrows are to stipulate to the builder that level access is required. I added extra garage depth to allow for the garage, that would definitely impact your facade elevation. If you remove the wall between the butler's pantry and mudroom you would have a SUPER PANTRY! But a true butler's pantry in that it was supposed to be where you would land with the veg from the garden so you would kick your shoes off inside the door, so I've noted a little bench seat there, then head in and wash it before heading over to the actual cooking area. Then if you get rid of the sliders and reduce the storage to shallow shelving on the middle wall you would have plenty of space to manoeuvre with mobility devices. For the washing labour machines - washer, dryer, dishy - try getting those mounted on plinths so the load on your poor back is reduced. I have dodgy joints so I am researching all the ergonomic ways to design work spaces to help me when I get to the awesome stage you guys are at with getting to build!
...See More
Dual-living proposed extension – what do you think of this plan?
Q
Comments (94)
Hi oklouise, thank you again so much for your suggestions to help me reflect on my choices! The great thing about this whole process is that it has really helped me clarify my must haves/dealbreakers and nice to haves. Key elements that I don't want to forego are: 1) a "master suite" with large WIR + private ensuite+ direct private garden access/views. The current northern bedrooms are elevated and do not allow these elements and better suited to small kids as no external doors and can be eyeballed from the kitchen. 2)The kitchen must be the heart of the home and connected to all living spaces so the host never feels disconnected from guests & can watch kids from almost any living space.I attended a party last weekend which had the kitchen blocking the living room from the outdoor space and the host commented they regretted it after renovating. 3)The dining room must be an end destination vs a corridor so it does not become a dumping grounds for bags, mail & everything else as the nearest flat surface to the entry point. 4) All new bedrooms must also be min 3 -3.2M wide on the narrowest side for me to justify them. 5) I reviewed all my lookbooks and tear sheets pulled to date and its a clear pattern that I want my 'adult' living and dining/entertaining spaces connected to the rear garden preferably wrapping l-shape round a deck or courtyard garden. In a sense 'broken' vs open plan but still visible through glass etc. 6) I would not be prepared sacrifice the prime N/NE aspect with utility rooms. 7) I don't wish to place a verandah at the front as it will never be used except extra maintenance and can create shading in summer via other methods. 8) capacity to rent out room with private living quarters. There are many splitter blocks in my area and I don't need it to operate as legal dual occupancy. 9) single level living -no second story bedrooms etc. 10) separation of main bedrooms when renting out section of house Phew....I think thats most of the checklist criteria I have been working to. Still think tanking the street appeal/front facade style but its probably leaning toward lux byron bay beach cottage meets modern coastal with some retro elements to hint at the history of this 1950s house!
...See More
What do you think of this plan?
Q
Comments (12)
Hello. Aaargh did not receive notifications from Houzz so didn’t realise I’d received responses. Apologies and many thanks! So our current apartment faces East and is above a Coles car park. The view from interior is sky but on the balcony on one side we look into apartments on the left. The other apartment is south facing and looks over a large park and can’t be built out. We are a family of three with an 11yo going on 18 and with all the bedroom doors opening into the living area, the idea of a corridor is actually appealing :) The third bedroom would be the adult’s study. The balcony space would definitely be smaller by being separated but I think we’ve entertained outside once in three years. Above is a concrete slab roof with no plant equipment. We know others on the fourth floor and they are not experience issues with the skylights. Our main concerns are twofold. The living area is 1.5m shorter than our current one and 50cms wider. Trying to get a sense of whether that would make a huge difference is challenging without seeing the other apartment. (The owner is open to selling but is conscious that he has a very good tenant and doesn’t want to spook him with inspections unless we’re super serious). The second is the Euro Laundry and no butlers pantry. Ideally we’d like to convert the powder room and laundry into a combined laundry/butlers pantry - but not sure how achievable that is as we imagine all the plumbing is currently in the wall separating the two. Would anyone be able to tell from this high level plan if that would be impossible? Many thanks for all your responses!
...See More
What do you think of our bathroom and kitchen ideas?
Q
Comments (24)
And to answer your question siriuskey. Yes the front room has been opened out into a verendah. This room got really hot in summer so wasn’t working as another living space. We’re restricted to what we can change at the front of the house as we are in a heritage area. We can make changes without a DA if we don’t change the front of the house. Agree we can change a lot with a wooden house, but I think we’ll be restricted on reusing windows. All our casement windows are original glass from the 1930s so won’t be to modern building code. If we move them, they’re gone. However replacing with modern glass would bring more light into the home. We’ve put fans in all rooms and always have the French doors open in bed 2 so light and ventilation haven’t been an issue. Might become so if we put a moody teenager in there though!
...See More
ddarroch
6 years ago
You could also investigate having a split skillion roof for the front half of the home, with north facing clerestory windows above the hallway. This will GREATLY increase the amount of light in that very long, dark hallway. The roof would be similar to this image.
ddarroch
6 years ago
Oh, a couple of points I was going to make about the original design.

Flipping the plan looks like will increase size of a single north facing roof area for solar PV. An important consideration in this day & age.

Your master bedroom faces west. This could get VERY got on summer afternoons. If you have a rarely used guest bedroom, I'd consider changing the plans to move the master & locate the guest bedroom on the western side of the home. If this isn't possible I'd be adding a N/S clerestory window to the master, increasing cross-ventilation, to aid summer cooling. If also be looking at low-E glass/tinting of western windows, shading by trees/vertical awning/shutters.
oklouise
6 years ago
last modified: 6 years ago
following ddaroch good advice another reversed plan to use northern light in all the bedrooms and living areas but unable to read the dimensions on your plans i've used some assumed measurements and added furniture to help understand the traffic patterns throughout the home
Elham Awan
Original Author
6 years ago
So much to think about. So helpful to have advice from people with so much experience! It’s a bit daunting the first time because there’s so much I’ve never had to think about. I’ll have to consult with our builder and see what our options are.

We live in Adelaide so it’s moderately cold in winter and quite hot in summer. Our northern neighbour is a one story house and there’s no two story houses around us. With the current orientation of the house, we have 900mm to the fence on the south side of the house (with the master bedroom) which comes in a bit to give us 1200mm after the kitchen. The garage is on the northern boundary and we have 900mm to the fence after that.

I really want a practical plan but also don’t want to over-capitalise because the other houses around us are fairly similar in size and seem pretty simple.
PRO
MB Design & Drafting
6 years ago
Seems ok to me.

If its from a volume builders plan I would avoid making any changes as they can sting you pretty hard for even relocating a door.

Spend time (and money) on quality fit out that will look good for years.

Don't forget landscaping, get a designer if need be, well worth money.
PRO
Paul Di Stefano Design
6 years ago
Be aware that to (technically) comply with building siting regulation buildings need to be either positioned on or within 150mm of a boundary or at minimum 1m offset. 900mm side boundary offset would require dispensation. Oklouise's suggested plan much better with bedrooms on the north and utilities on the south.
