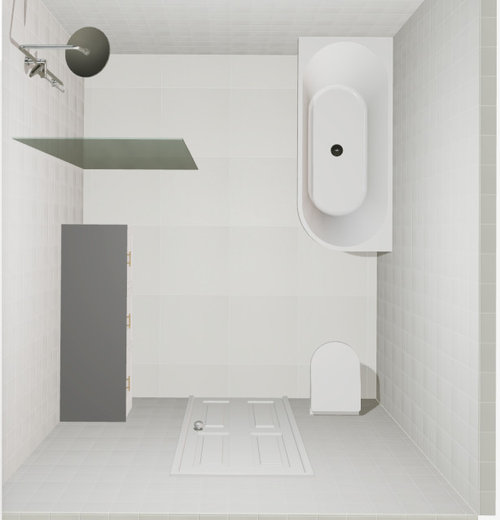

Hi all, we're up to the bathroom part of our renovation and would love some feedback on the proposed design.
After drawing a lot of different layouts, this one seemed to flow the best and allowed us to maximise the space.

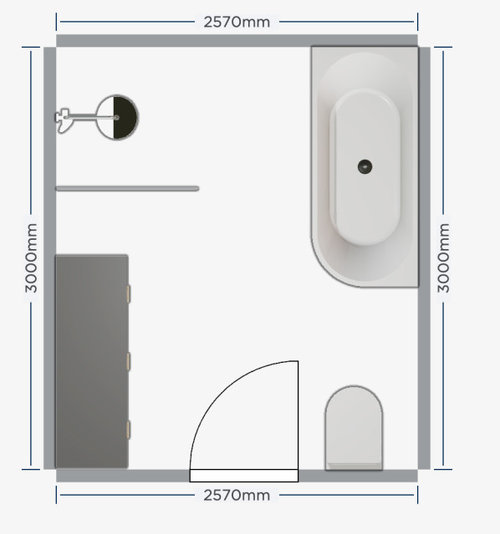

Total room is 3000mm x 2570mm.
There is a window on the wall above the bath/toilet which you can't see in the drawings.
In the current design we have allowed for the following:
- 1700mm bathtub corner/back to wall
- 1000mm x 1000mm open shower
- 1500mm x 500mm vanity with single basin

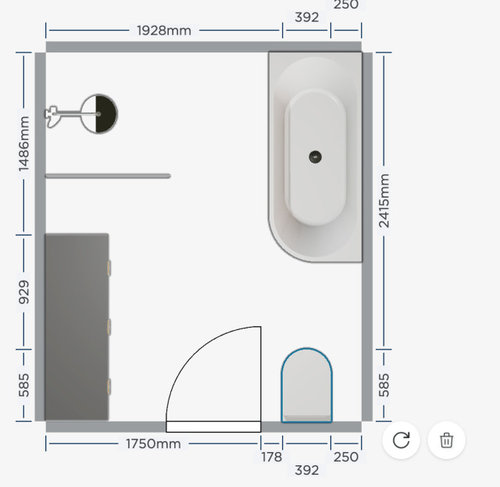

- Wall faced toilet 392mm wide x 624mm deep (hidden behind door - 770mm wide)
The main concern we have is the toilet position, we have left 250mm space against the wall and 175mm near the door as the door would be closed most of the time anyway.
Does this seem like enough? Any other thoughts on how we could maximise the space? Cheers!
Kate
