Hi Paul In apartments, the killer for layout changes are always drains, then water supply, then load bearing walls. Before you consider doing any changes to the layout, I would advise you to locate the drains (pics would be good) as they will likely restrict you. The drains are important for obvious reasons but also important is the fall (ie downward slope) of any drain you wish to install in a separate location. It means you have to take into account more height the further away from the existing drain you go. It is likely that your existing laundry trough/basin has a drain going down to the floor, and this is going to interfere with the proposed ensuite entry location. Ditto if it is going into the wall. The big one is the new shower. It will need to have a 50mm waste (drain) in the centre of where your washing machine now is.... and the question is where is it going to go.... I would suggest swapping the vanity and shower over to access the existing trough waste if it is large enough. In a lot of these older apartment buildings, the waste sizes are down at 38mm, which is not going to drain fast enough for a shower. If your existing waste is that size, you will need to have a hob to the shower as it will fill up, and you will also need to check health regs to see if it is allowed in your state. To get the drain for the new ensuite vanity and new laundrette sorted, I would punch through the new kitchen wall and run drainage along the wall behind the new cupboards and around to the existing kitchen sink waste. This will give you plenty of fall and a place to hide the pipes. For the new basin to the existing, you will need to see if you can get it around to the existing basin waste in the bathroom adjacent by running it around and under the bath. Cheers

I hope you don't mind... seeing the external pics I have a totally different idea! But don't worry I don't expect you to actually use it, and it's just a rough sketch. You don't need to extend the footprint at all in my opinion. based on the picture of the front of house your drawing is a bit out... the entry stair actually sits to the left of the front door I think. so there is a little more room there, but i'm not sure if its wide enough. So maybe there is enough room to put a hallway back in and create a master suite upstairs? The front deck becomes a private retreat and I put the bath out there! It's only accessible from the master and bed 4. If you don't need that many bedrooms maybe even leave the master and bed 4 combined and have a huuuuge master area. there's still the study downstairs that could also be a spare bedroom. I thought as the front deck is so private it could be really luxurious. The old kitchen becomes the walk-through robe and ensuite. The new kitchen goes straight under the old, and the kitchenette becomes the bathroom,accessible from the pool. the downstairs kitchen is connected to the dining and living, but the posts define the areas. The kitchen can have a halfwall with a servery-style opening between the posts, and will still have that connection. I didn't draw it in on the downstairs picture, but the entry needs to be pushed a little forward and then the stairs run up from the left corner and arrive where the original entry was upstairs. The downstairs living is accessed straight from the entry at front and opens onto the front patio, under the back deck becomes the back patio. I feel like you have less new to build and retain more of the original layout. in fact the upstairs bathroom is entirely intact.

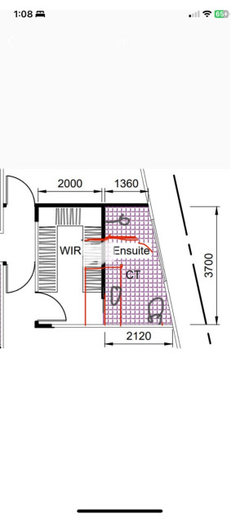

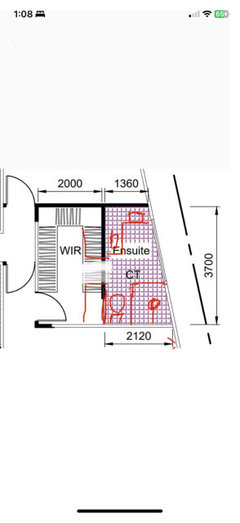

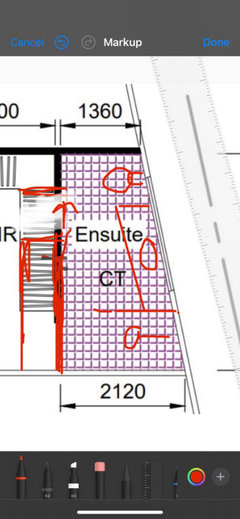

It would be hard to go past OKL plan, This layout gives a partner sharing the room a space to come in late or go early without disturbing each other by moving the door along the wall which allows for extra robe space that can be closed off with the bathroom via a sliding door. The large bedroom window could be shuttered to provide an attractive bedhead, privacy and light when needed The wall on the other side of the bed could have builtin storage on either end of a desk/vanity which could be closed off with bifold or retractable doors. A TV could be mounted/recessed within the bathroom wall cheers

@dreamer I don't have measurements as we're not in the house yet... but attached is a picture of the bathroom. House is on concrete slab and brick veneer, so I imagine a bit more work would be required to remove and fill in said window? @Gianna Bruschi I might just suck it up and live with the current layout and a little refresh. We are only in this property for 6 years. Too long for me to want to live with a green bathroom and not long enough to invest too much. That's where my dilemma is.
