Splashback or Rangehood first?

last month

last modified: last month

Hi,

I have a 900mm

Bosch range hood which needs to be installed in my kitchen reno. I will be having 600X600X30mm terrazo tiles as splash back. Do we tile first and then place range hood or the range hood first? If tile first, will there be a noticeable gap? How can the tiling be done first so there is a clean finish after the range hood goes in? What's the advantages of either way?

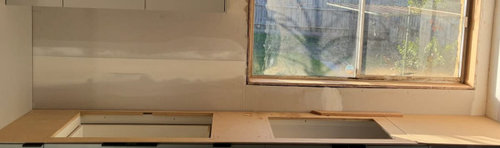

Pic shows the area left of the window.

Thanks so much in advance 🙂

Featured Answer

siriuskey

last month

There doesn't appear to be any wall cabinets

Sort by:Oldest

Comments (14)

Kate
last month
You answered your own question. Unless you want to tile behind range hood then it goes in first as well as bench top.. the tiles seal the gaps to the wall
Freddi Gee
Original Author
last month
Thank you. The stone bench top has been installed since this pic was taken.
It’s an integrated range hood. So, better to tile first ?
Related Discussions
Mirrored rangehood - are you a fan?
Q
Comments (61)
We have a glass rangehood similar to Futuro Futuro's Acqualina Glass product and I love it. The top and bottom of the glass gets given a clean about once a week with citrus multi-purpose cleaning spray and then wiped down with a moistened glass cleaning cloth for a pristine finish. Takes around 5 minutes in total. Cleaning the brushed stainless part is more difficult. As mentioned previously, its hard to remove all the marks. Will definately try the WD40. Me, personally, I don't like the mirrored finish. Given the window is acting as the "splashback" I would have gone for something invisible like what Sheryl Horton showed.
...See More
Does my kitchen HAVE to have a rangehood?
Q
Comments (24)
Hello, Sorry in advance to bring up an old thread/subject, However looking for any additional advice/direction i can get on comment from midesign0401 below... mldesign0401 In Victoria a range hood is a requirement in new kitchens. No longer is it acceptable for a simple exhaust unit, rather it must now be ducted to external air. So your range hood must be flued either through your roof space or via a horizontal duct to an external wall. It must be installed and signed off, and your house insurance will require your sign off document if your house insurance is to cover damage due to fire, or you will find yourself in a predicament. The provision for installing a range hood above a gas cooktop is a minimum placement of 650mm above your cooktop, and 605 for an electric hob. Including induction. Hope this helps. Our new home got handed over to us by builder just before Christmas (21/12/2018), We are still waiting for under mount rangehood to be installed into our kitchen, The house was delivered with no rangehood as the hole they provided was to close to accommodate rangehood selection, After a couple of visits we have been told that cupboards are to be removed and replaced, Which we are still waiting for as the 'cabinetmaker is very busy', My inquiry is to see whether there is a building code reference/link I can forward on to them to hurry the process up, Also concerned that insurance would not cover our new house if there happened to be a fire Thanks in advance, We look forward o nay help, Regards, Ken and Nadia Buxton
...See More
Off centre rangehood and oven
Q
Comments (14)
Hi Julie, There's a discrepancy between your front and overhead elevations on your plans. Your front elevation indicates 1050 per side of the centre line - indicating a total length of the wall as 2100 with a 900 oven - effectively leaving you with 600 either side for your microwave and cupboard. Your overhead elevation is looking off - it's indicating 540 cupboard, 900 oven and 600 totalling 2040mm and the combined length on that plan is stating 2040mm. Looks to my amateur eye that there is a hiccup in the plans - head down to site with a tape measure and check what's been built - and talk to your builder about how he read the plans (I'd also be asking why this is the first time I'm seeing any issues). You could make it look less noticeable by changing the small cupboard doors - just have one door rather than two will help alleviate the look of the 60mm discrepancy. If you find that it is the plans that are off - I'd go back to whomever drew them up for a quiet word - you won't help yourself but you might stop someone else from having a similar issue. Good luck!
...See More
Need help with kitchen rangehood and open shelving combo
Q
Comments (4)
Sharon, I think they both look great. Trust your instincts. I personally would not be put off buying a house, because I didn't like range hood. I really like the sound of all the choices you have chosen for the kitchen.
...See More
bigreader
last month
If it’s integrated won’t you be tiling to the bottom of the cabinets. The range hood should be flush with the bottom of the cabinetry once installed. Tiling is usually after and there is usually a part tile either at the top or bottom, sometimes both depending on the tile. If you have a preference talk to your tiler.
Freddi Gee thanked bigreader
siriuskey
last month
I would be tiling first so the range hood can sit to the top of the tiles
Freddi Gee
Original Author
last month
Hi Big reader. Yes, the idea would be to tile up to the bottom of the cabinets. I thought if the rangehood comes later, it would sit flush?

Do you have pic of what you mean about the part tile top/bottom?

Thanks
Kate
last month
Talk to your cabinet maker. How did they design the cabinet to house the range hood
Freddi Gee thanked Kate
Freddi Gee
Original Author
last month
There are cabinets above to house the integrated rangehood (sorry the pic cuts out half - you can see the tip of the bottom of them) .Inside the cabinet there holes for the flue to run and on the perimeter base of the cabinet is a frame in which the rangehood sits.
Kate
last month
Then I expect the tiles will hit the cabinet frame not the range hood so fine to tile
siriuskey
last month
Best to tile first as the range being 900 when the wall from window to corner is wider.
Freddi Gee
Original Author
last month
@siriuskey. Good point! If time first then will there be a gap up the top where the range hood is
siriuskey
last month
You should be able to tile right up to the wall unit and the range hood should sit within that unit.
Freddi Gee thanked siriuskey
bigreader
last month
What’s the gap between the bench and the cabinetry? It’s normally about 650mm and that will be awkward spacing for the tiles you’ve chosen.
PRO
Dan Kitchens Australia
last month
We install the wall cabinets for the integrated rangehood first, then tile up to the underside of the cabinets. Yes, it does get tricky getting your height right, but if you have the tile size and know your grout gap then it's just math. This way ensures the kitchen installers are all done, not having to come back after the tiler. Just a thought, if you're doing full DIY then it probably doesn't matter the order.
