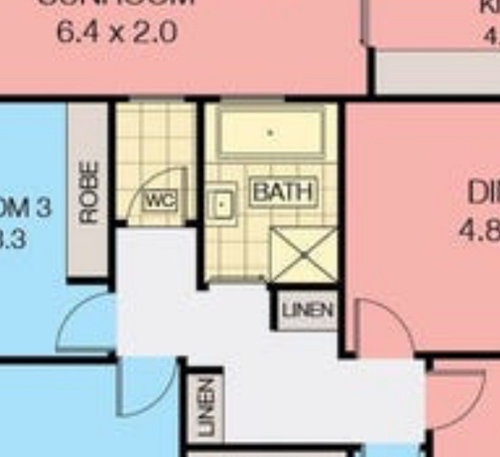

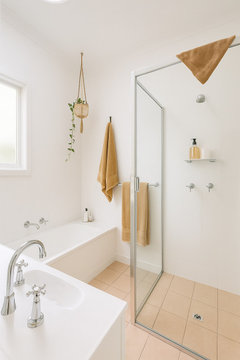

Hi Cassie, I think the bath under the window is best idea as you if you want you can have a 1700mm long bath and a big shower with still keeping a 1200mm vanity in the room will give you all three items of a large size. I did a quick drawing of what it would look like with the spacing you gave and the last image is of a bathroom we did with a similar spacing except with a 900 x 900 screen. Hopefully, that helps a little good luck with the renovation

I have decided that it is a bit extravagant for me to have two bathrooms in my little house based on the small amount of times the second bathroom will be used. I am still wanting to have a laundry cupboard that has the washing machine and dryer in it (and maybe some storage or bench space for sorting????), but where the top bathroom was, I am just going to have a walk in robe off the bedroom to the right. It will have a cavity sliding door into the walk in robe. The walls go to 2700mm. To enable the shower to have a width of 900mm in the lower bathroom, the doorway is now going to be moved so that the entry to the bathroom is via a door to the far right. The toilet will now be in between the shower and vanity, so that the toilet isnt the first thing you see when you walk into the bathroom. Can anyone see any issues with the changed design, and can you suggest how to design the walk in robe and the laundry cupboard to maximise storage and function. Should I now make the the bathroom deeper and the walk in robe narrower? Should I make the laundry cupboard wider? PS. If I ever buy another house, it will be one that has already been renovated.....I am not made for design decisions. Thanks in advance for your help.

my first suggestion has minimal plumbing changes and no wall changes although i would reverse hinges on the entry door, space for a 90 x 90 shower and rotating the toilet should be quite straightforward for a 730 wide toilet space ( a little tight but adequate for most people especially if you're ok with a 620 door) a standard 1500 x 450-500 vanity will fit under the window and the gap at one end is ideal for hanging a hairdryer with a handtowel rail higher up the wall, there's wall space next to the shower for a bath towel rail and a mirror doored wall cabinet would be ideal...and, for a little more expense another option with a double shower.. a relative term with bathrooms that are always more expensive than expected but well worth obtaining quotes to find out costs for both options for comparison..ie do you want a generous shower or vanity? btw i think moving walls in a solid brick house has potential unwelcome surprises and doesn't improve options and installing different fixtures will need new flooring and waterproofing anyway so no better time to do a full upgrade and changes to the floor is the best way to achieve a walk in shower but you need to discuss with a plumber before making any decisions

Hello Ashlee, I do not think you have enough room really for separate bath but if you use a cav slider door (great idea) and a bath across the far wall, a shower next to that: wet room style there is room for a toilet along the right hand wall, with a vanity basin on the other wall. You would need to use mirrored shaving cabinets in the wall for any storage as there is not enough space for a vanity as such. The other suggestion is the tiles bath: which is then square at the bottom not nicely body curved: that makes it safer to stand in with the shower over top and loo next to that would allow enough space for small 800mm wide vanity. That could work better. Go well: show us what you do! Cheers Enjoy! Margot
