Bathroom layout review, advice and feedback

last month

We have put together a draft floor plan and are wanting the ground floor bathrooms to be wheelchair/low mobility friendly as we have aging parents (around 80yo).

Floor plan link

Our aging parents are not in wheelchair as yet, so would either want it to be:

- built from the start to be wheelchair/low mobility friendly; or

- built with future provision, and low cost to upgrade to wheelchair/low mobility friendly

Would appreciate any advice and feedback on Bathroom layout options!

Feel free to recommend changing the floor plan layout (e.g. change location of shower, toilet, or walls etc) to get a better overall outcome.

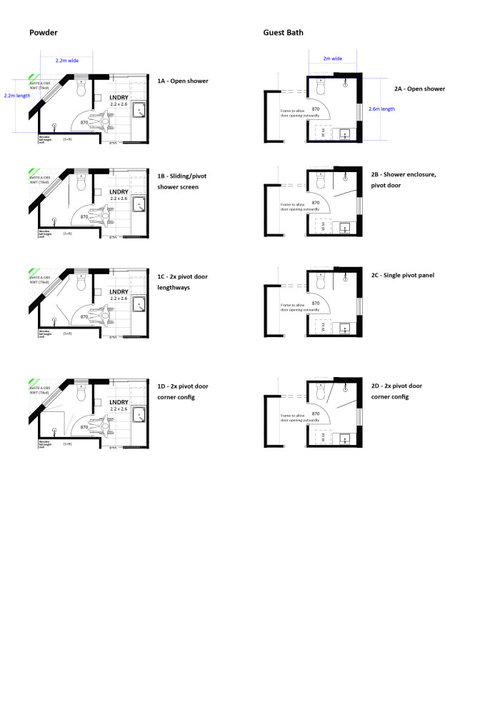

Bathroom options we considered (refer to link and image below)

1) Powder room

a) Open shower from start (optional shower curtain)

b) Shower with pivot/sliding across / remove later if required to be open shower

c) Shower with 2x pivot doors length ways (side fixed panels optional) that can open up to be an open shower (e.g. similar to Ikea Oppejen)

d) Shower with 2x pivot doors corner config that can open up to be an open shower (e.g. similar to Ikea Oppejen)

2) Guest bath

a) Open shower from start (optional shower curtain)

b) Shower enclosure with pivot door

c) Shower with single pivot panel

d) Shower with 2x pivot doors corner config that can open up to be an open shower (e.g. similar to Ikea Oppejen)

Bathroom Floor Plans Link

Sort by:Oldest

Comments (5)

bigreader
last month
1b-d and 2b and d won’t work for wheelchairs. Who’s drawing up these plans? There are resources available on the internet that have the recommendations and requirements for accessible bathrooms. If you’re using a professional I would be questioning their ability.
Kate
last month
And don’t forget towel rails.
Related Discussions
Advice for very small bathroom reno.
Q
Comments (19)
Hi Jess Suazo - What a wonderful opportunity to do a fantastic bathroom renovation, like all small rooms they do require some careful detailing. I thought the following might help a bit: 1. If you move the door as shown on the included plan sketch (please not that I had to guess the dimensions) you will notice that you have quite a bit of space. 2. The shower (bath drain) and the toilet plumbing are kept in the similar position thus save of plumbing costs. 3. By using a glass screen, possibly running full height, and no glass door for the shower you save on shower door costs. (you might like to provide a second strip drain at the shower entry if splashing of water is of concern) 4. You can run a decent towel rail behind the door. 5. If you want extra space you can open the door outward, if you are not concerned by the closeness of the other doors. 6. You have somewhere to hang the toilet paper roll on the side cabinet, and could run a good size mirror at the back of your basin. Like all small areas there is a lot of detailing required, also you would have to take some accurate measurements of the space before further detailing and choosing of fitting and fixtures. The choice of tiles and lighting would be a priority., natural lighting (maybe a skylight ) would help a lot in the ambience of the space. If you do a good set of working drawings, and then choose your builder well I think you may have a very satisfactory result. Hope this is of some help, I would be happy to continue further advice on this project. Regards Michael Manias - mm407p@gmail.com
...See More
Design advice please on small bathroom reno to queen of UNcreativity!
Q
Comments (26)
hi we have about six months ago now, re done our bath room , similar size to yours, and , i can take some photos and email them to you , we have maximised space, and walls , put in a white stone bath under the window , it is a metre in width , with a cool water spout coming off the centre under the window we pu t afalse ledge in to sit , candles etc on , , we tiles floor to ceiling, off white , wall mirror cabnit with three mirrors , inset into the wall so its only sits out a we bit from the wall tiles , floating bath room vanity , so that it makes the floor space look bigger , . matching stone square basin sits ontop of the vanity to one side so plenty of room to sit all your bath room stuff when need be , seperate shower all tiled as well , with inset , shelves for shampoo etc, also , when you open the bath room door and walk in when you close the bath room door behind it next to the shower is a very narrow floor to ceiling shelvec for towels, now the hole is there we jaust havent got the shelves put in yet. , we gt loads of comments as the bth room dosent look small evn though it is , , most expensive item the sqwat extra wide stone bath , made to order basin / tap ware and shower spray thing ,oh and the white stone vanity which we had made to order as well , due to the sizing .
...See More
Advice on bathroom/laundry reconfiguration please
Q
Comments (5)
Thanks oklouise. I love your ideas and the ensuite layout is great. However, I don't think I made my dimensions clear enough and I don't think the rest of your design can work Bed 1 - 3600 X 3600 Bed 2 - 3700 X 3000 Current bathroom - 1960 X 2600 Current laundry - 1820 X 2600 Current toilet - 1340 X 1100 So if we keep the current bed 1 and bathroom space and convert that bathroom to the ensuite, that leaves approx 3200 X 2600 for the bathroom/toilet/laundry. Ideally we would leave the current windows ( a 1000x1100mm sash window 1200mm from the floor in the laundry area) and a high (550x700mm window in the toilet area) which makes juggling the space a bit challenging. Thanks so much for your help with this!
...See More
Design Advice: Orientation of Bathroom Door
Q
Comments (4)
there should be more separation between the bathrooms and kitchen/dining/living rooms so i would have the door opening off the entry with the front door opening against the bathroom door for more privacy and hinged doors that offer some privacy when partially open, can have an extra towel rack and/or clothes hook on the back of the door and invest in solid core doors that will be quieter and seal better against moisture and odours than slider doors..and the bathroom arrangement is too cramped as there should be about 800mm width for the toilet, at least 750mm preferably 900 width for a vanity leaving about 1200 width for the shower and wall space for towel racks and toilet roll holder with limited space a stacking glass door will use less floor space and be cheaper and easier to screen than bifolds and moving the study door will make the view from the front door walls for artwork and much better than looking into the study or bathroom
...See More
Anne Monsour
last month
Add grab rails too next to toilet and in the shower .
Cee
last month
No experience in design here but heaps in the shower assist area. Grab rails (proper ones) are important. But in my opinion you need SPACE. LOTS of space. Independance can change to needing supervision or prompting, to dependance needing hands-on help. Is there space for two people? One person seated on a bathroom commode & one person standing/bending/moving around wirh a shower hose?
oklouise
last month
our long term experience with disabled and elderly family members reinforced our decision to include walk in shower and toilet spaces with enough floor space for a carer, shower chair and wheelchair, there are grab rails for toilet and shower, hand held shower with taps accessible from outside edge of shower for the carer as well as from a seated position.. big shower spaces with extra tall shower curtains are so much better for easy access with safety and privacy than glass shower doors, all towel rails are certified grab rails, wall hung toilets with concealed cisterns are installed higher off the floor and the vanities are also wall hung to allow for extra floor space for waste basket and easy cleaning and there's enough dry floor area for a chair to help with dressing and undressing away from wet areas.....the main bathroom with shower, toilet and vanity to be used by the disabled person with carer is about 3.5m x 3m plus an extra alcove for the special disabled bath tub ...planned carefully in advance rather than modified later allowed the bathrooms to look and feel comfortable and spacious for all users rather than just disabled friendly
