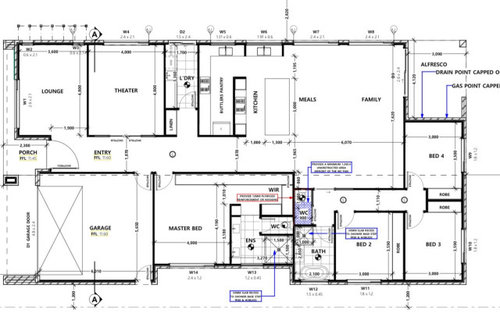

Updated Floor Plan – Feedback on Layout & WC Door Placement
Hi All,
Thank you everyone for your valuable feedback and comments so far. We have tried to incorporate as many suggestions as possible into the plan, and this is where it currently stands.
We would appreciate your thoughts on the overall layout and functionality.
One specific point we would like advice on: the wall alignment next to the WC that currently has a door opening into the bedroom passage. Would it be better to keep this door, or close it off and instead have the entry at the corner of the family room (near Bed 4), creating a larger continuous wall with a smaller, more discreet entry?
Your feedback has been extremely helpful so far, and we’d love to hear your thoughts on this.
Thank you!
Comments (11)
3 months ago
3 months agoRelated Discussions
Floor plan feedback
Comments (17)Hi Bella D, Option 3 is a winner hands down. A few things to consider: * You do not want a bathroom/toilet directly off your or dining area. While that might be ok when it's just your family at home, it won't be with guests and toilet noise. * The bathroom placement restricts the amount of heat moving up the stair case. This is a major problem in open plan two-storey homes. In summer upstairs becomes unusable because it's so hot and in winter downstairs is freezing. * You could move the bathroom to the left so it is under your ensuite. Having all the water use areas in one spot (upstairs and down) reduces how much hot water travels and sits unused in pipes - it can be a considerable energy cost over a year. Locate your hot water as close as poss. This position would also block noise to the bedrooms. * The only prob is you have no laundry in this design. Could you move the kitchen towards the back wall and re-arrange a small laundry/bathroom here. How much washing/ironing do you have. I don't need a huge laundry in my modest house. I don't want to spend too much time in there. Just need storage for dirty and clean clothes plus machines. Good luck. BTW, which way is north - your whole design should have the living areas facing north and excluding summer sun from the east and west and have minimal windows facing south - they just give poor quality light and add to heat loss in winter.....See MoreFeedback on custom floor plan
Comments (74)I'm still concerned that the covered alfresco area is located to the NE, it will block much of your winter sunshine from entering your living areas, making your home colder in winter. Personally, I'd try to locate your alfresco o the eastern side of your living areas (& somehow moving the master further SE). However, if you are going to stick with your current alfresco location, I'd recommend you change from a hipped roof alfresco, to a gable roof alfresco. If you make it an opened gable, & have a cathedral ceiling you'll end up with quite a bit more winter sunshine entering your house. Similar to the images below....See MoreFloor-plan feedback/ideas needed -What do you think of this floor-plan
Comments (51)siriuskey, Yes, the courtyard is open to the sky (no roof over it), I assume this is what you mean by double story. Ref. below photos, I would love to get this look, especially the first and last photo, where you can see family living space from the first floor. I can't achieve this in my plan as it eats a lot of floor space upstairs. The referred plan (photos) has a very big void combining staircase, hallway and dining area. I know it is not easy with cooling and heating when you have such a big void. So, I explored a few ideas (with my limited knowledge on this topic) before achieving the current floorplan. I have also thought about, in my current plan, extending the void on the staircase to the dining area (it is more like L shape) but i wasn't sure if that makes any difference. keen to hear your thoughts....See Morefloor plan layout for new build - feedback needed
Comments (17)From a "passive solar design" point of view, everything is right. Rectangular home facing north/south. With north facing living rooms, rarely used rooms to the west. But one other thing to consider, plumbing. Locating it close together will lower building costs, & the wastage of water, waiting for hot water. So I'd consider swapping bedroom 4 for the western wet areas. Behind the kitchen is have the laundry, then bathroom, then linen, the bedroom furthest to the west. I'm not mad about western bedrooms, especially in hot climates. But in this case it sounds like it would be used sparingly. Plus if make sure there was no western window, just a northern one. Insulating the western wall well, & using a radiant barrier (reflective insulation). The approach will also significantly shorten the length of the western hallway. Greatly increasing the size of bedroom 4. Talking room sizes, & room numbers, from a sustainability point of view, I think the home is too large for what is likely to be a two person home for much of the time. The embodied energy (emissions created) from a new build home is huge, averaging 15 years of operational energy. I'd be looking to reduce the house size, by using multipurpose rooms. The occasional kids housed in the study, or the media room. This can work out great with clever design (like incorporating murphy beds). How will the media room be used? Will noise be an issue. Will you be happy to have it so close to the master bed? The building orientation/shape will be great for solar PV, with a large roof area facing north. I'd I was building nowadays, is be aiming for an all-electric home. Ditching gas - of its even available where you are - in favour of efficient electric appliances. Reverse cycle AC for heating (if it's required), supplemented by fans for cooling, hot water heat pump (extremely efficient), induction cooktop (sensitive, fast acting, easy to clean). All powered by solar PV. If it's an option, I'd look at 3 phase power, which will let you install a larger PV system. It will also allow you install a fast charger for EV, likely to be your next car purchase, or soon after....See More

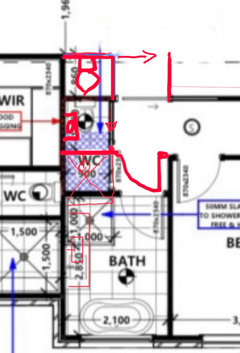

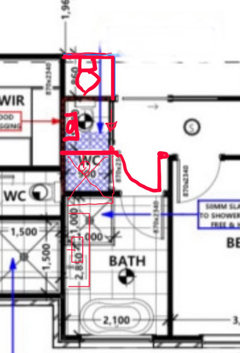

3 months agoAgree island depth 900 is standard. Basin in wc and bigger family vanity using dead space in family
- 3 months ago
- 3 months ago
3 months ago- 3 months ago
Hi @oklouise, thanks for the valuable feedback!

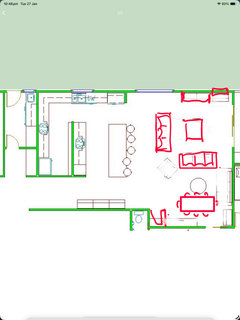

We were actually working off a previous layout suggestion (attached) that showed the TV on that Bed 4 wall, which is why we were leaning that way. We definitely see your point about the West wall offering better open-plan views, but our main worry there is the glare from the two large windows on the East side hitting the screen.Do you think the glare would be manageable? If we stick to the Bed 4 wall for a cozier feel, do you think it's unworkable space-wise, or just less ideal for viewing angles?
- 3 months agolast modified: 3 months ago
- 3 months ago
Or swap dining and living so you can enjoy the view from lounge. The big tv should be in the theatre room.
