The arrangement that you have looks quite functional, however you really need to consider carefully the size of the shower versus the size of the bath, and the location of towel rails and a toilet roll. Most adults prefer a 1200mm long shower, whereas yours looks smaller? However if you increase the size of the shower you will need to decrease the length of the bath so it will be less appealing as an adult sized ensuite bath.

Many houses have a bath in the family bathroom and don't double up with a second bath in the ensuite. If your husband was prepared to compromise on not having a bath in the ensuite then you would get the opportunity for a double sized shower, and a double vanity, which is great for busy mornings.

Where had you planned to put the toilet roll holder? Are you planning to use towel hooks instead of towel rails? No matter how stylish your bathroom is, it is the little details, such as toilet roll holders and towel rail locations that can make a big difference. I am always amused to see great looking bathrooms where these crucial elements have been neglected.

Birchgrove - Ferdinand · More Info

At the end of the day it really comes down to your personal preferences, priorities and budget.

Best of luck with your ensuite,

Dr Retro

of Dr Retro House Calls.

with careful selection of sizes my suggestion has a full size freestanding bath (curved ends allow less banged knees) a walk in shower recess with screened toilet and optional screen against the bath, double handbasins with matching mirror doored wall cabinets, convenient toilet roll position and several options for towel rails and a hinged door (choice of a cavity slider would require reinforced wall to add the towel rail near the basin and the hinged door is more private, quieter to open, seals in noise and moisture and has the option for clothes hooks on the back of the door

Pushing the envelope due to the fixed window unfortunately - what do you want? An awesome ensuite that feels spacious or a squeezed result with everything shoved into it? That's the decision that needs to be made here. As Retro said, comes down to priorities. When the elements "breathe" it won't feel awkward. I'd avoid positioning vanities hard into corners as well - it results in a room that feels imbalanced. Is the window fixed? Is it a reno or a new build?

13th Beach Golf Links Residence · More Info

dimensions in my plans are maximum available space but smaller fixtures would still be OK and a gap between vanity and wall is a good place to hang a hairdryer

As a great architect once stated (the obvious) "Form follows Function"....best of luck with it :) PD

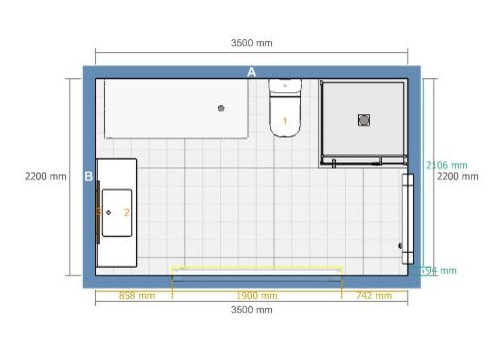

Two different floor plans, you didn't mention what style of window.

Layout one has the shower and bath end to end you can swap them.

The vanity on the opposite wall starts a 2 draw vanity with mirrored shaving cabinets above following on from that at the same height and shallow bench top of 430 with or with out open shelving below across the window. The back of the bench top to be the same as the cabinet so that is what would be seen if looking from the outside in.

The window with large shutters with two mirrors suspended/fixed in front of the window and blinds as similar in the photo.

Layout two with bath and shower next and open to each other, Japanese style.

Both have plenty of space to accommodate towels and toilet roll holders

I'd change window height/size/location.

You said it won't fit the outside look but its not going to fit the outside look if you change glass to obscure.

Can you post a pic of that elevation or is it more to do with council application/requirements if window size is changed, etc.?

A long high window so you can use that wall space for vanity shower etc, in a style that works with you other windows, is this at the front of your house?

i suggest that the original window with plantation shutters or similar could be a real feature with the bath having an enviable laid back view out to an enclosed courtyard garden as the room already has enough floor and wall space to achieve everything you need and replacing the window would also require a "patch" in the external walls below a new window...please post some photos from outside to show the windows

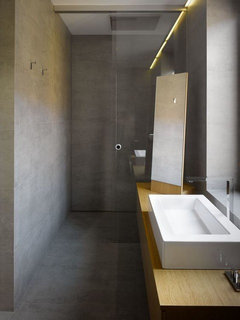

I feel like I only have one bath room plan that I come back to again and again as the most practical solution to nearly all houzz questions like this: line everything up along one of the long walls, with the bath and shower at the inner end. Like this:

Daniel L that's also my go to especially when space is limited, works well and looks great cheers

or concede the bath, keep the window and go two basins...

Coastal Cottage · More Info

I concur with Daniel, for tight setups invariably pulling everything onto one side is the most spatially efficient and functionality effective - I use this ledge/wall basin setup all the time. The bathroom above is only 1500 wide including ledge, but still plenty of room to swing a cat with this set-up. The issue I have the with the bath and shower set-up within the same area is simply function/practicality in that the bath gets wet ALL the time. If you can live with that no dramas, but if you don't use the bath much and hate cleaning up then it will drive you bonkers on a daily basis....everyone has different priorities - good luck in working it out :)

Is that the front of the house? You might have some privacy issues even with frosted glass in that window. At night it's going to be fairly obvious from the outside if a naked body is moving about inside the ensuite!

Hi Stine, I would strongly suggest that you change the window to a higher narrow one for better use of space and privacy, I will post a suggestion, sorry you don't like the Japanese shower and bath far more space and clean lines to this design than others.

• very happy with our venetians on low bathroom windows and we've also added frosted window film to the lower section of another window to add privacy without obscuring the high view of trees and sky and a small fraction of the cost of replacing the window or glass

Stine, the original design doesn't look amateurish, it just looks like the standard plans of project builders from the past 20 years, and it works well enough. If you want my critique of that layout it would be:

1) placing a fixture in each available corner makes bath rooms feel smaller and look a bit cluttered;

2) there is no side wall at the toilet so the TP roll has to be on the wall behind you, more difficult to reach;

3) it requires a fully screened shower with a door. As well as the aesthetic move towards simpler shower screens and more spaciousness, there are practical reasons why the trend is away from shower cubicles, from easier cleaning to less mechanical components in need of maintenance or repair;

4) a vanity mirror at the short wall of a rectangular space makes it feel very long and narrow, while a large mirror on the long wall makes even a very narrow space feel spacious.

you can use a free standing loo holder. We have one as we have that bathroom layout above in our

Alright let's see if we can put this to bed. There's nothing at all wrong or amateurish with your home. Agree seeing photo it's arguably too much of a compromise nor cost effective to move/change the window considering outcomes. The solution here will come in the fit-out and how to balance that as best as possible within the constraints set. You can do it with a 1500 size bath option, 900x1200 shower. and it's essentially a tweak/fine-tune from the idea you had originally. (I shouldn't really do this but here you go/I'm feeling generous today ;) )

Good luck & Merry Christmas :) PD

No problem Stine - hope it works out for you :) PD
