Building a Home Lighting Design Dilemma

Where to place power points and lights?

6 years ago

last modified: 6 years ago

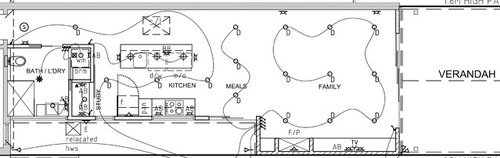

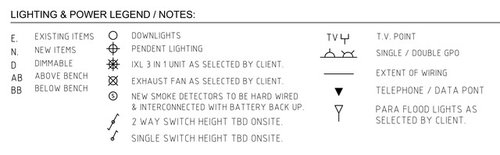

Can you take a look at the electrical plan for my renovation and advise on the placement of lights and power points. Are there any places that have been missed or any changes that should be made? Thank you

Sort by:Oldest

Comments (5)

girlguides
6 years ago
My electrician installed ixl in sim position to yours and gate it Too far from shower to exhaust steam properly Too close to shower to dry under heat lamp. You need fan over shower and ixl in middle of floor space Extra cost nothing whereas grievance perpetual
Robbi Zed thanked girlguides
PRO
Style Precinct Interior Design & Decoration
6 years ago
I would suggest a pendant fitting over the dining area (on a dimmer switch) rather than 3 downlights. This is an area where you can create an atmosphere for dining which downlights dont give you. Best wishes

Surrey Hills · More Info

Large family home renovation & addition · More Info
Robbi Zed thanked Style Precinct Interior Design & Decoration
Related Discussions
Bath entry point
Q
Comments (44)
Hi LouieT, answers to your q's - Side Windows - not too fussed about them but we'd need windows whether they are the existing ones or new/enlarged I guess depends where they end up. In the current floorplan the one in the toilet is a small window which is boarded up atm. The one in the bathroom is a long/tall louvre window - works quite well in the bathroom - not so sure about how it will go in winter though. Plan with WC in laundry - its 965mm to the window so should fit, however I don't think a WC in that position would work for us as it means people needing to walk to the back of the house to go to the toilet - and I could imagine our ensuite becoming the default toilet if thats the case. Moving laundry - I think we'd probably need a window. Losing large storage - i think we're resigned to losing it. However I think if we can maintain the current laundry or a reasonable portion of it we can owrk in some more storage there. Having had a look at the 3 I think the first one (where current laundry is maintained) is the best. I had a play in sketchup with my measurements and I think your first 3D plan and the first of the three can fit with a few tweaks. See below...
...See More
Electrical points
Q
Comments (3)
best way to decide is to enlarge your plans and add furniture and appliances and then you will be able to see what's needed eg add up the number and location of counter top appliances you might use in the kitchen and pantry then add two extra outlets (we have 6 double power points in the kitchen plus concealed power points for dishwasher, fridge, freezer and MW) master bedroom needs bedside lights, electric blanket, clock radio, TV? and we always have a two way switch so that we can turn on the overhead light from the bedroom door and turn it off from a switch next to the bed, kids bedroom need bedside and desk lamps, add easy access power points at each end of hallways and/or biggest rooms for vacuum cleaners close enough to clean every room...lights for bathroom and kitchen need to shine over counters not the back of your head so add lights under wall cabinets in addition to ceiling lights, bathroom needs pp for hairdryers, shavers, toothbrush, cleaning appliances etc laundry needs pp under the sink to connect washer and dryer plus extra above counter for iron ...do you use a sewing machine or other special appliances inside the house or in the garage or outside....every room has a purpose but once you add a big heavy couch can you still access pp for a lamp or to plug in a laptop? try and imagine walking in and out of every room to identify best location for light switches and AC controls ... think about where you would like to recharge phones and include an easy access location for a recharging station and it's useful to have a two way switch and/or sensor lights for outside plus outside power points for electric tools and extra lights (keeping in mind that every light, power point and switch is connected by expensive electrical wiring and electricians labour) so where possible try and make pp on both sides of a wall...and good luck with your new home
...See More
Confused on where to place the TV
Q
Comments (5)
Is there an antenna connection? Can you do a sketch? The pics might make perfect sense to you because you are familiar with the room, but it is like assembling an incomplete puzzle to gain sufficient understanding to answer your question. Is the order of the pics 1 3 4 2 going clockwise?
...See More
help with power point Butlers pantry please
Q
Comments (5)
You can always have bench top PowerPoints. Just Google pop up PowerPoints. I have personally used this kind https://www.sparkydirect.com.au/p/SBIP2PSS/clipsal-sbip2pss-pop-up-power-outlet-stainless-ste.html And they worked
...See More
PRO
Dr Retro House Calls
6 years ago
I would engage a lighting designer, or get one of the Beacon lighting designers to help you with those glary spotlights. Your proposed lighting plan looks like a builder's dumb-down approach to lighting, and is commonly used in display homes to feature the home, but can be quite challenging to live with.

There are so many other choices that will add warmth and character and more options to how you use those rooms. Nothing worse than the glare and reflection on a TV screen from ceiling downlights. Consider wall sconces, standard lamps, concealed LED strips in cabinetwork, and pendants to give you more flexibility and better quality lighting that is more suited to the use of the spaces, with less car showroom ambience.

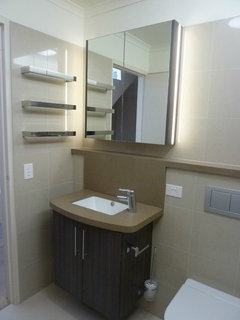

Keep the intense lights to your kitchen task areas such as benchtops, and some consideration to side lighting your shaving mirror. Your downlight above your bathroom vanity is only good for cleaning it, and it will cast deep shadows on your face when shaving or doing make-up (and add ten years to your age in the mirror).

Dr Retro

Tiny Townhouse Luxury Bathroom Renovation · More Info
Robbi Zed thanked Dr Retro House Calls
PRO
MB Design & Drafting
6 years ago
No light switch in Kitchen...? Walk down hallway to turn on and off.

Pendants ok.

Too many downlights in family. I would say you could get away with half as many downlight's..... and I like brightly lit spaces...

You'll save money or just end up with a better layout by using a designer as mentioned above.
Robbi Zed thanked MB Design & Drafting
PRO
Paul Di Stefano Design
6 years ago
Consider why you are lighting certain areas. You don't necessarily need coverage of every m2 to a certain light level. I advise designing lighting specifically to the task/function required. Agree with MB D&D in that WAY too many downlights - unless you want to mop the floors in the evening. You could arguably do away with most of the downlights, get an appropriate single fitting over the dining table, and for the living area maybe do just 4 downlights but make sure you get dimmers on everything so you can control the light level. Have you thought about doing LED strip under the cabinets for the back bench in the kitchen? you really probably only need then the pendants over the island and the strip over the benches, keep the light in the study, and yeah make sure the fan is actually in the shower....have you considered any wall lighting? it can give a great mood/vibe in lieu of being smashed with the downlighting...
Robbi Zed thanked Paul Di Stefano Design
